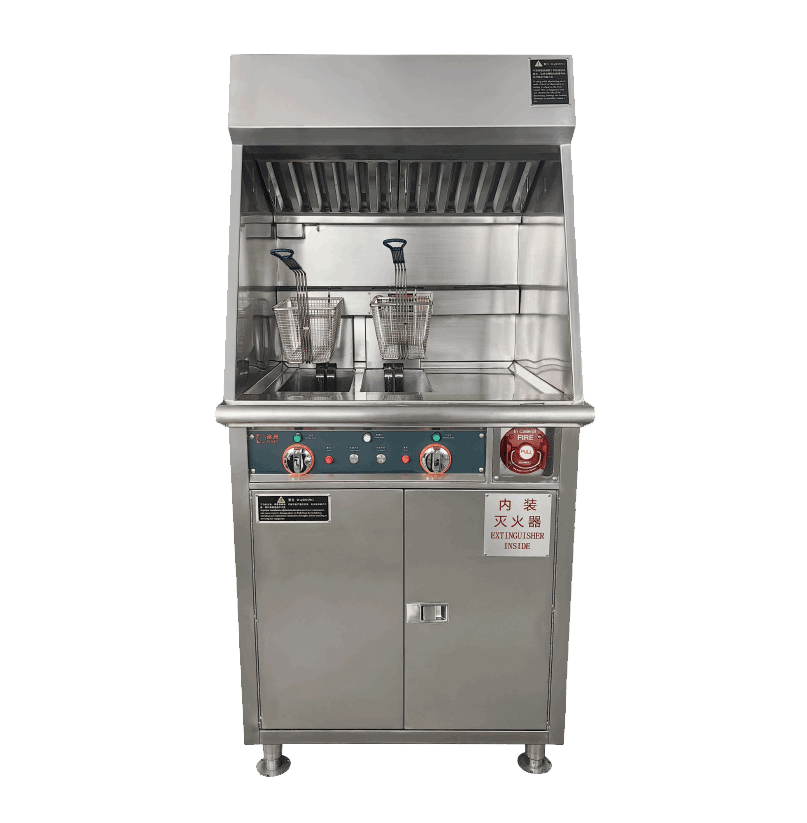

Stainless steel construction
Set automatic detection, fire fighting, alarm and cut off power auomatically
Set the fire extinguishing system emergency manually
Set control and contact controlling power output
Thermostat setting work, protect limit thermostat failure alarm
Set pan drain valve
With handrails
Equipped with stainless steel adjustable feet, it is convenience to install on vessel
Provide CCS、DNVGL、MED、EC certifcation | DZF07-10A | DZF14-20A | DZFJG-10L | DZFJG-20L | |
|---|---|---|---|---|
| Capacity(L) | 10 | 20 | 10 | 20 |
| Voltage | 380/415V-3PH-50Hz 440/480V-3PH-60Hz | |||
| Power(Kw) | 7.1 | 14.6 | 7.1 | 14.2 |

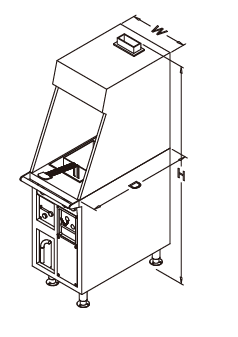

| Size (mm) | 480 × 820 × 1750 | 780 × 820 ×1750 | 480 × 820× 1750 | 780 × 820× 1750 |
| Weight (kg) | 135 |
158 | 135 | 158 |
| Note | Can provide DNV MED,EC certification | Can provide CCS certificate of marine product or CCS certificate of type approval | ||
